Heat press temperature controller replacement UK: swap to a panel PID

Heat press temperature controller replacement UK usually means the OEM board is blank, drifting ten degrees, or stuck on a segment display that no longer matches the platen feel. Owners search for a spare controller rather than a new press. A panel PID plus external SSR is a common retrofit when the fascia cutout and sensor type can be matched. This site sells the XMT7100 panel PID at £108.25 inc. VAT with a published 45 × 22 mm cutout — not a guaranteed drop-in for every Chinese press without measuring.

Blank or drifting press controllers and UK replacement searches

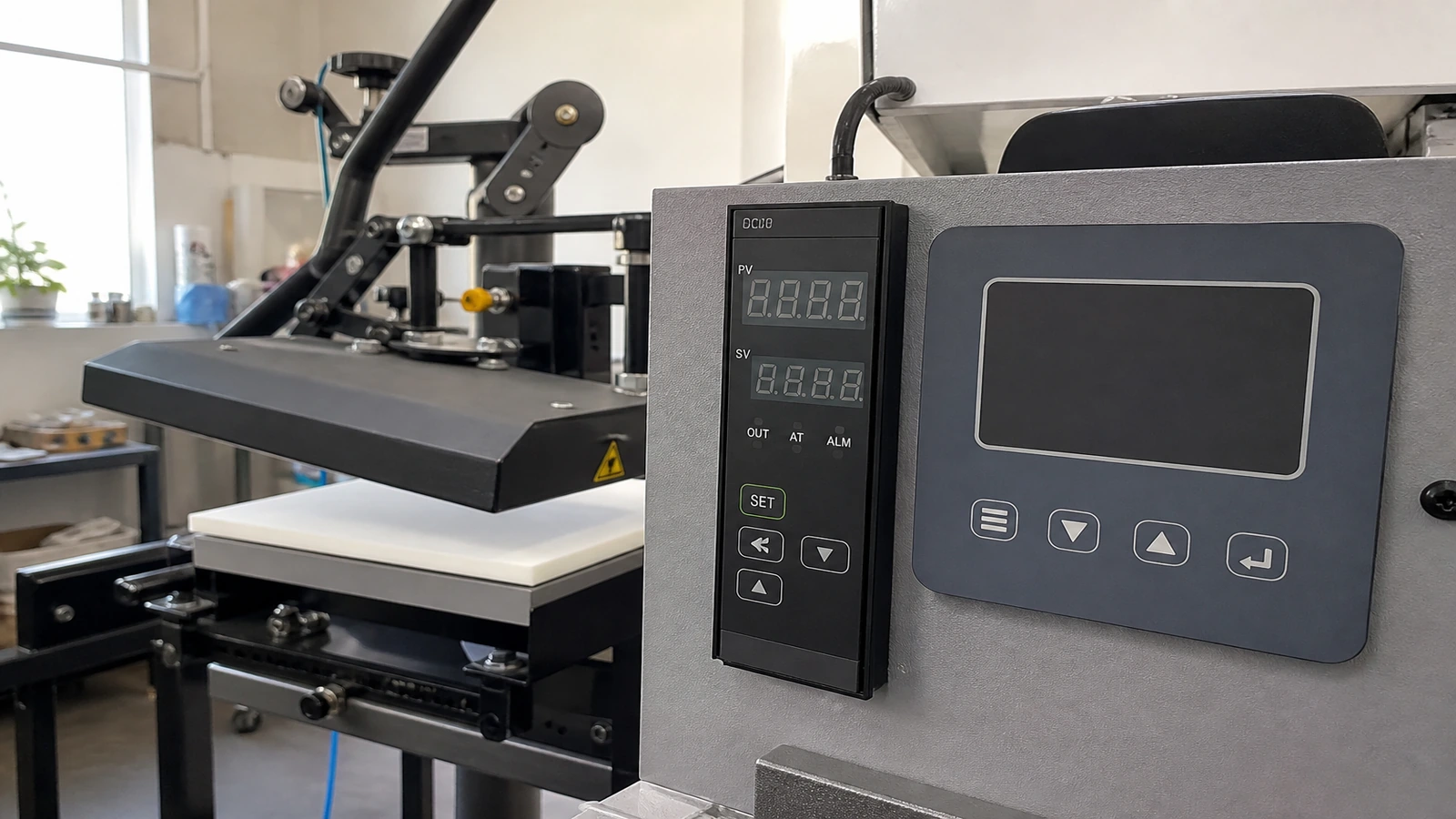

Commercial garment and sublimation presses often use a slim digital head driving a SSR on the platen heater. When the head fails, UK owners compare spare OEM boards against generic 1/32 DIN PIDs. Replacement intent is “keep the press frame, fix the brain”, which is different from buying a PID kit for a new build.

Match slim panel cutout and sensor type first

Published XMT7100 dimensions on this site: 45 × 22 mm panel cutout, 48 × 24 mm bezel. Photograph your failed head and measure the hole before you assume interchangeability. Sensor inputs published on the detail page include K-type and Pt100 among others; match the probe wire type your press already uses or plan to replace the probe too.

• Cutout width and height in millimetres, not “looks similar”.
• Probe type and wire colour convention — do not mix K and Pt100 without menu changes.
• Depth behind panel: published clearance language on the product page should be read on the live listing.

SSR drive path for the platen heater

Platen heaters cycle under PID control. Published output on the XMT7100 listing includes 12V DC SSR voltage pulse, which expects an external SSR sized for heater current. The internal 3A relay is not a platen amperage switch. Read the SSR vs relay output article before you order the wrong output variant.

Display reading versus platen feel

A new controller can read stable PV while the platen surface still feels uneven if the probe is in the wrong pocket or insulation has shifted. Offset and filter settings live in the product manual, not in this article’s memory. This piece will not invent ±0.5% accuracy or “zero overshoot” claims for platen uniformity. Log setpoint, displayed PV, and a surface thermometer spot check when you commission the swap.

Controller-only order checklist

Before checkout, confirm on the XMT7100 UK buy guide and the live detail page:

1. Output variant: SSR pulse versus relay matches your heater chain.
2. Probe and SSR are in your parts bin or on the order unless the listing bundles them.
3. Cutout matches 45 × 22 mm or you have a fascia plan.
4. You are not expecting ramp/soak profiles or food-grade certification from a press controller swap.

Review the XMT7100 detail page after fit checks

If measurements line up and you need a UK-listed slim panel PID, review price, warranty, and dispatch messaging on the XMT7100 detail page. If the press needs a proprietary OEM board shape, a generic PID may be the wrong shortcut.

Will any PID fit my press door?

Only if cutout and depth match. Published cutout here is 45 × 22 mm.

Does a new controller fix uneven platens?

It fixes control logic, not mechanical hot spots. Verify probe placement.

Is SSR included with the controller?

Not unless the live listing says so. Plan external SSR and heatsink separately.
